Arduino
We use Arduino as our starting point to learn to use new components given Arduino’s simplicity and easy use.
Below is the pinout on the right and left side of an arduino. As mentioned in the SPI section there are specific pins for using SPI communication.

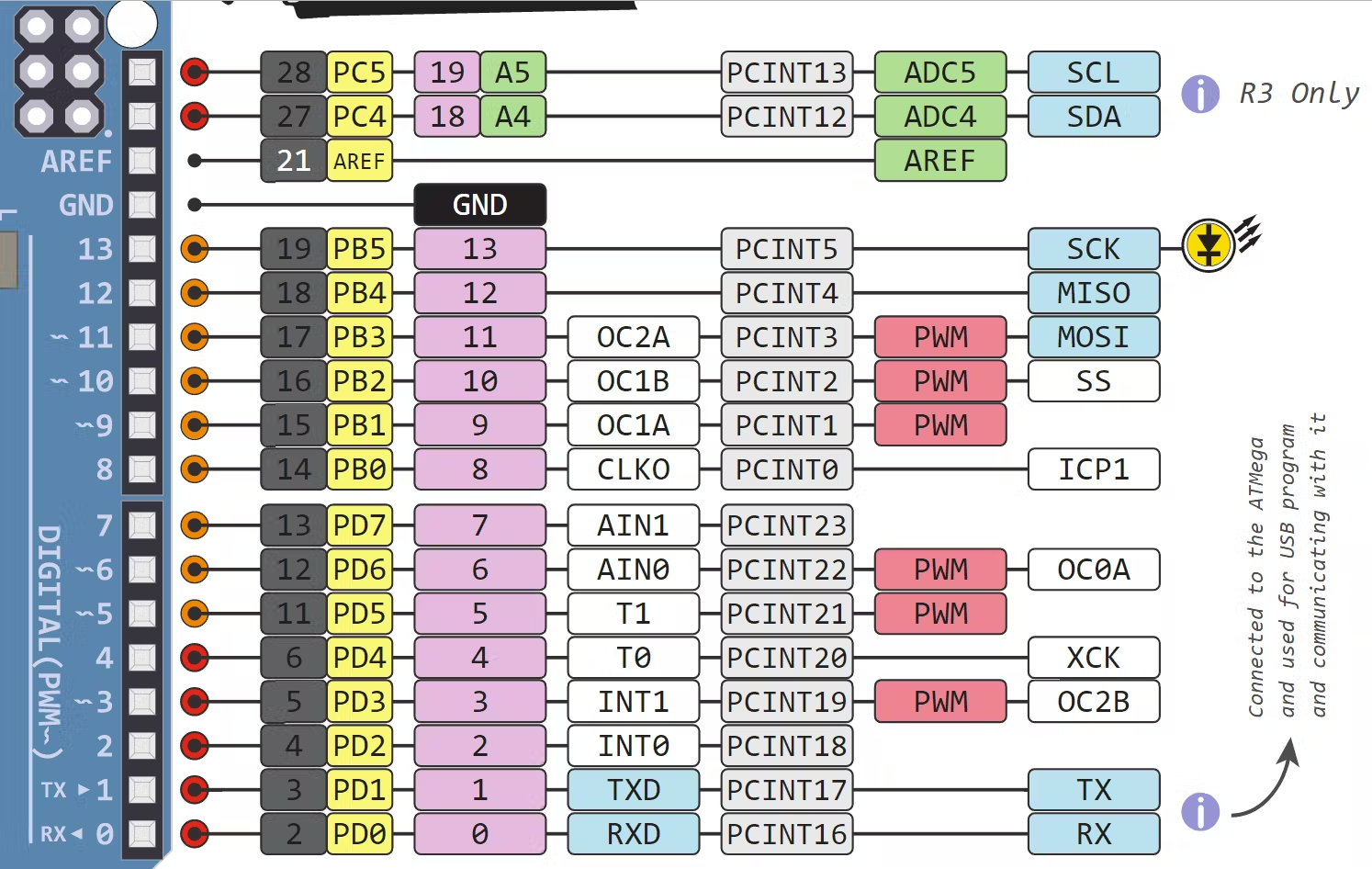

Right Side / Digital Side

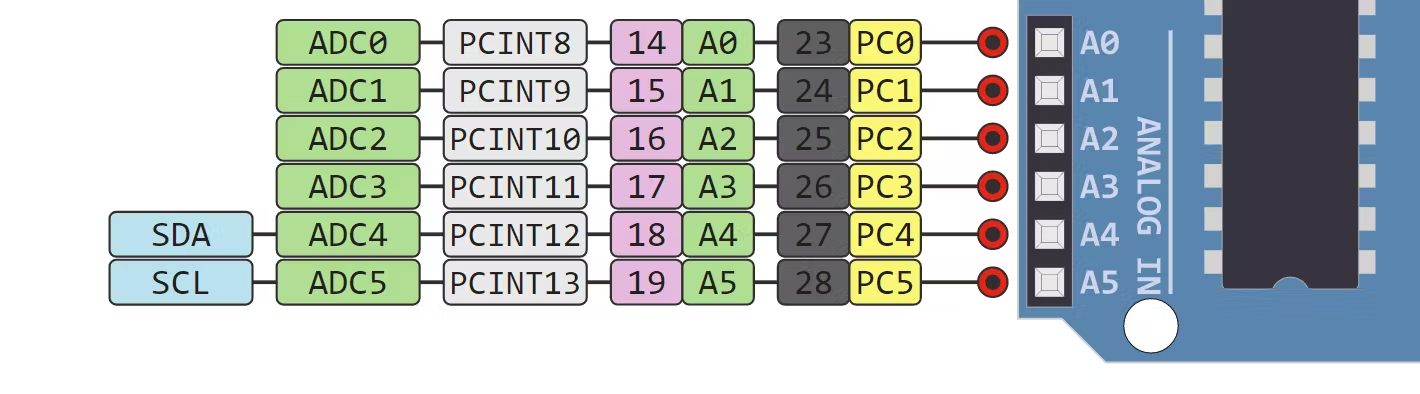

Left Side / Analog Side
You do not need to memorize these diagram!
Installation
Follow the following instruction to install Arduino on your laptop / PC
Download Arduino
Go to the following link
Run Installer
Click the .exe file
Install
Run the following inside of the terminal
$ sudo apt update $ sudo apt install arduino
OR
$ sudo snap install arduino
To-Do
The following are excersives to show that you have the basic amount of experience with Arduino to use it to test different sensors that could be implement into the exoskeleton suit.
The answers tab is provided to so that you can see a working version of the to-do’s.
[ ] Turn on the onboard LED
[ ] Blink the onboard LED on and off with a 2 second period and a 50% duty cycle
Duty Cycle = percentage of time the LED if HIGH
Period = time required for LED to repeat from start to finish
This is not the only solution to this exercise as programming is very open ended.
void setup(){
}
void loop(){
}
